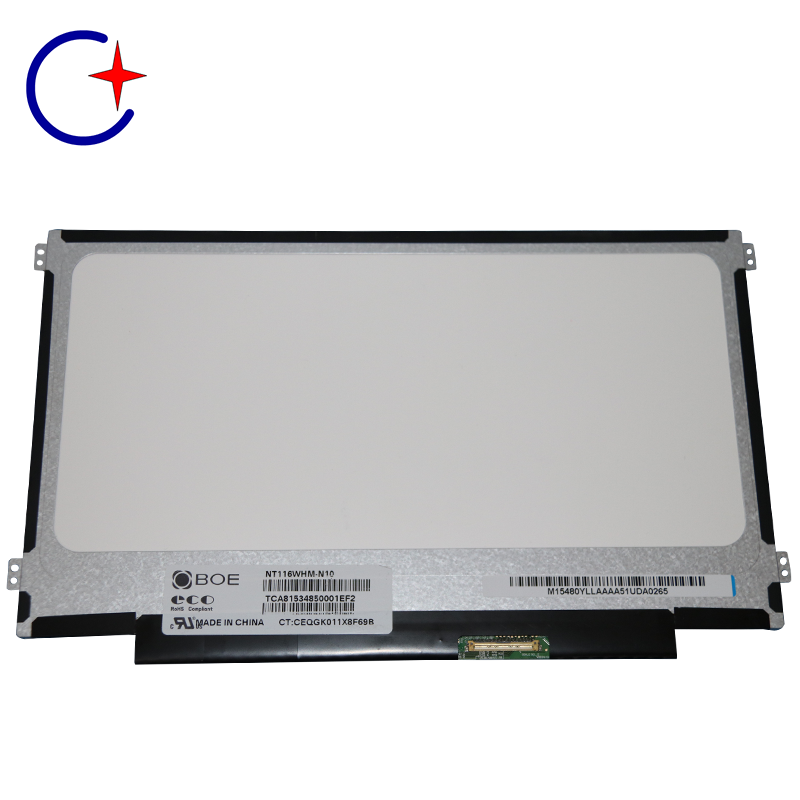

Welcome to 11.6 slim Edp 30pin screen NT116WHM-N11_Laptop Screen_Products_
CALL TO SCHEDULE YOUR FREE!
+86-755-83699966
1366×768 (WXGA) eDP (1 Lane), 30 pins
| Manufacturer |
|---|
| Screen Size |
| Pixel Number |
| Active Area(mm) |
| Bezel Area(mm) |
| Luminance |
| Viewing Angle |
| Good View at |
| Color Depth |
| Outline Shape |
| Refresh Rate |
| BOE |
| 11.6 inch |
| 1366(RGB)×768 (WXGA) |
| 256.125 × 144 (H×V) |
| - |
| 220 (Typ.)(cd/m²) |
45/45/20/40 (Typ.)(CR≥10)
|
| 6 o'clock |
| 262K 45% (CIE1931) |
| Flat (PCBA Flat, Depth 3.4~4.0mm) |
|
60Hz
|
| Model Name |
| Screen Type |
| Arrangement |
| Outline(mm) |
| Treatment |
| Contrast Ratio |
| Work Mode |
| Response |
| Backlight |
| Used for |
| Touchscreen |
| NT116WHM-N11 |
| LCM , a-Si TFT-LCD |
| RGB Vertical Stripe |
| 268 × 168 × 3.6 (H×V×D) |
| Antiglare, Hard coating (7H) |
| 500 : 1 (Typ.) (TM) |
|
TN, Normally White, Transmissive
|
| 12 (Typ.)(Tr+Td) ms |
| 8S3P WLED , 15K hours , With LED Driver |
| Without |
| Signal Type | eDP (1 Lane) , Connector , 30 pins |
|---|---|
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
